Megajolt ECUs for Rover/TVR engines
If your engine isn't listed below then please contact us.
!

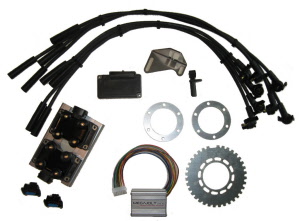

Complete Megajolt bundle for Rover V8 engines

MJ-RV8

Contains:

  • Megajolt ECU
  • Pair of new coil packs and connectors
  • New crank sensor and connector
  • Refurbished EDIS Ignition module
  • Rover V8 Crank sensor bracket
  • Twin coil pack bracket
  • Loom kit
  • 36-1 trigger wheel
  • Set of 8mm silicone spark plug leads
  • Complete with software and mapping cable to allow you to tune the system and maps for a wide range of engines

Complete Megajolt bundle for Land Rover 4 cylinder petrol engines

MJ-LR4cyl

Contains:

  • Megajolt ECU
  • New coil pack and connector
  • New crank sensor and connector
  • Refurbished EDIS Ignition module
  • Universal crank sensor bracket
  • Coil pack bracket
  • Loom kit
  • Univeral 36-1 trigger wheel
  • Set of 8mm silicone spark plug leads
  • Complete with software and mapping cable to allow you to tune the system and maps for a wide range of engines

Megajolt bundle for Rover K-series engines

MJ-Kseries

Bundle contains:

  • Megajolt ECU
  • New coil pack and connector
  • New crank sensor and connector
  • Refurbished EDIS Ignition module
  • Universal crank sensor bracket
  • Coil pack bracket
  • Loom kit
  • Univeral 36-1 trigger wheel
  • Complete with software and mapping cable to allow you to tune the system and maps for a wide range of engines

Please note that a new set of spark plug leads will be required.

USB-serial adaptors

USB-serial adaptor for computers lacking a serial port.

Many new laptops and PCs do not come with a serial port.  These adaptors plug into a USB socket and allow you to connect up to your ECU.

Many cheaper adaptors give problems, these adaptors use a premium chipset and tested to work with Megajolt, Megasquirt and Emerald ECUs.

Hard cut rev limiter

Hard cut rev limiter board for Megajolt systems
The Megajolt ECU includes an ignition retard rev limiter as standard.  The hard cut module works with the existing soft rev-limit and fits inside the ECU case.  When installed the soft-limit of the ECU automatically retards ignition timing to zero degrees 100 RPM before the hard limit activation point. This makes for a progressive application as you reach the rev limit.

Tacho Driver

Tacho
tachodriver130
Tacho driver module for coil-driven rev counters
Suitable for Megasquirt, Megajolt and many other ECUs the tacho driver allows you to retain your existing coil driven rev counter.  If you have a more modern rev counter accepts the 5 volt output of most ECUs then you do not need one of these.

Wasted-spark

Individual coil per cylinder

2-input tacho driver

4-cylinder engines

2-cylinder engines

3-input tacho driver

6-cylinder engines

3-cylinder engines

4-input tacho driver

8-cylinder engines

4-cylinder engines





Please note that some rev counters can be particularly difficult and may require additional tweaks to work correctly.
